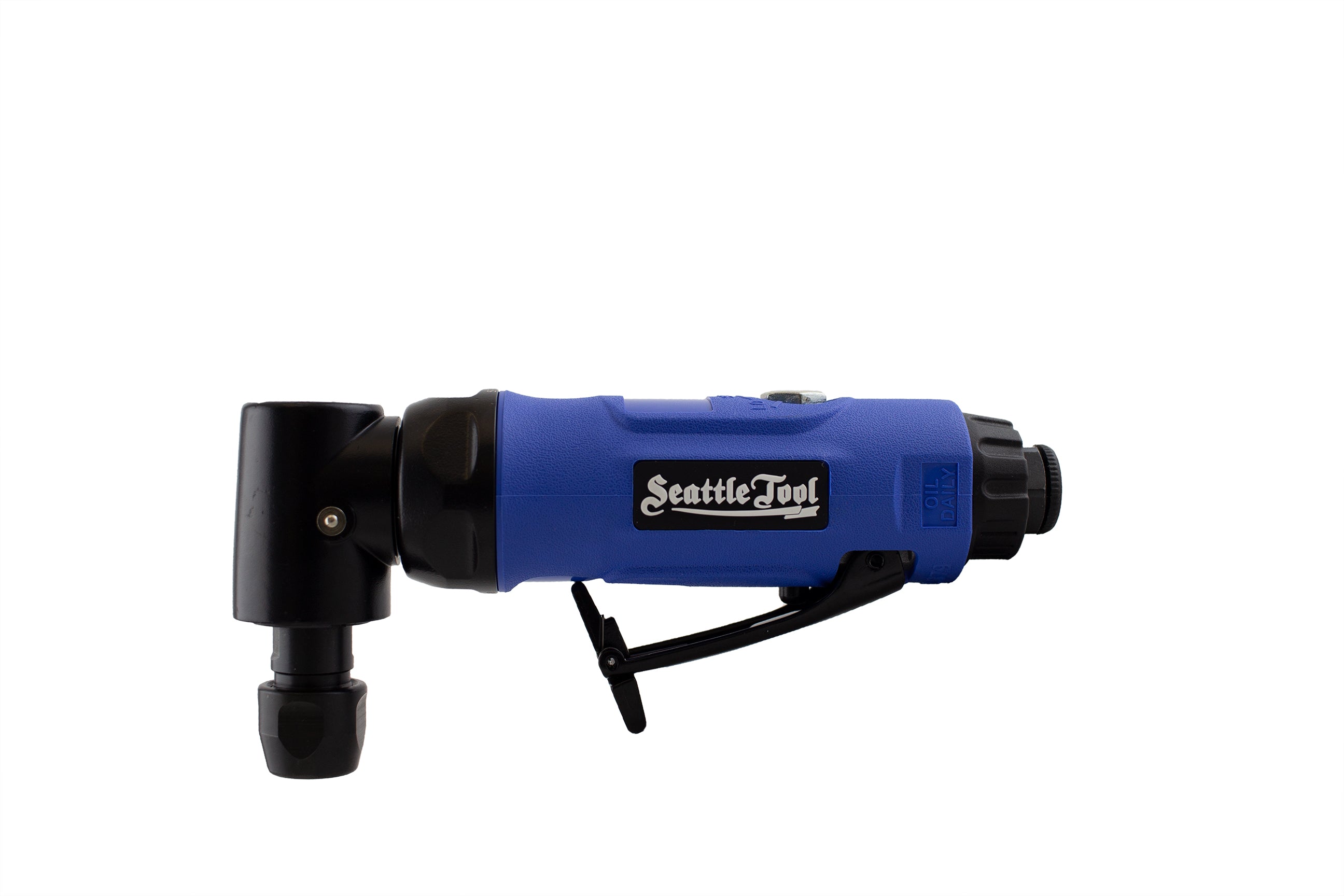

Mini 90° Angle Die Grinder
Couldn't load pickup availability
Overview
The Seattle Tool Mini 90° Angle Die Grinder is a versatile and high performance die grinder suitable for a wide range of applications. The die grinder provides 0.3 HP with free speeds up to 20,000 RPM. Its lightweight and low profile design combined with a right angle head allows for excellent maneuverability and control when working in tight spaces and on hard-to-reach surfaces. Twin-bearing, low vibration design and improved, low noise muffler minimize user fatigue.
Features
- 0.3 HP pneumatic motor with free speed up to 20,000 RPM
- Twin-bearing design results in precise spindle concentricity and reduced vibrations
- Tool-adjustable free speed regulator allows for control of tool speed
- Safety trigger prevents accidental starts while allowing for feathering and fine control
- 360° adjustable exhaust with low noise muffler
Specifications
Rated Power | 0.3 HP |
Free Speed | 20,000 RPM |
Collet Size | 1/4" |
Vibration Level | 0.5 m/s² |
Noise Level | 85 dB(A) |
Air Consumption | 2.6 CFM |
Recommended Hose Size | 3/8" |
Operating Pressure | 90 PSI |
Air Inlet Thread | 1/4”-18 NPT |
Length | 155mm (~6") |
Weight | 0.5kg (1.1 lb) |
Warranty
This product is covered by a 5 year warranty. Visit our Warranty page for a complete breakdown of our policy.
