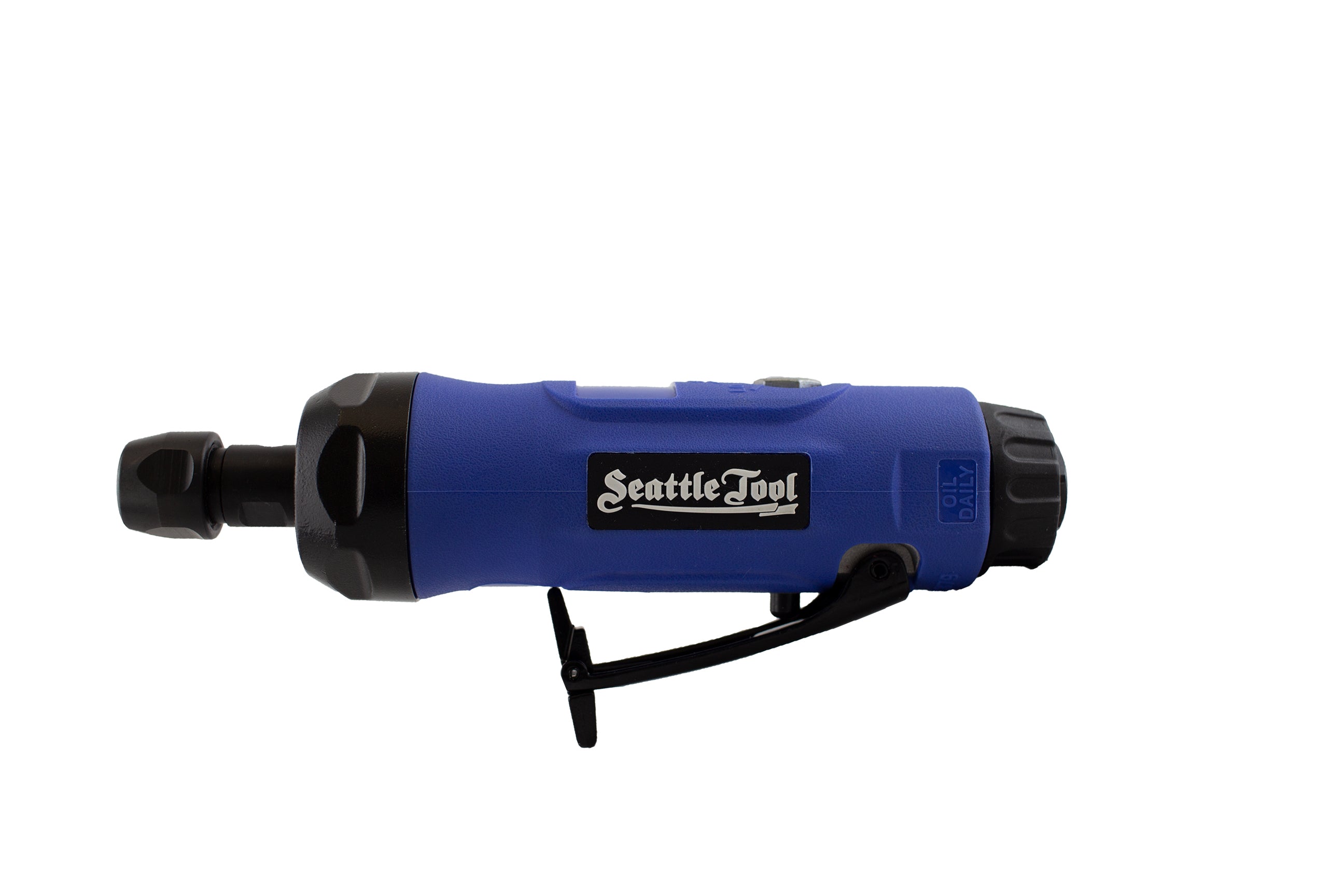

Straight Die Grinder - Seattle Tool

Straight Die Grinder

STDG220




Overview

The Seattle Tool Straight Die Grinder is a versatile and high performance die grinder suitable for a wide range of applications. The die grinder provides 0.5 HP with free speeds up to 22,000 RPM. Its lightweight and low profile design allows for excellent maneuverability and control when working in tight spaces and on hard-to-reach surfaces. Twin-bearing, low vibration design and improved, low noise muffler minimize user fatigue.

Features

  • 0.5 HP pneumatic motor with free speed up to 22,000 RPM
  • Twin-bearing design results in precise spindle concentricity and reduced vibrations
  • Tool-adjustable free speed regulator allows for control of tool speed
  • Safety trigger prevents accidental starts while allowing for feathering and fine control
  • 360° adjustable exhaust with low noise muffler

Specifications

Rated Power 0.5 HP
Free Speed 22,000 RPM
Collet Size 1/4"
Vibration Level 0.5 m/s²
Noise Level 86 dB(A)
Air Consumption 3.5 CFM
Recommended Hose Size 3/8"
Operating Pressure 90 PSI
Air Inlet Thread 1/4”-18 NPT
Length 185mm (~7.25")
Weight 0.8kg (1.7 lb)

Warranty

This product is covered by a 5 year warranty. Visit our Warranty page for a complete breakdown of our policy.
